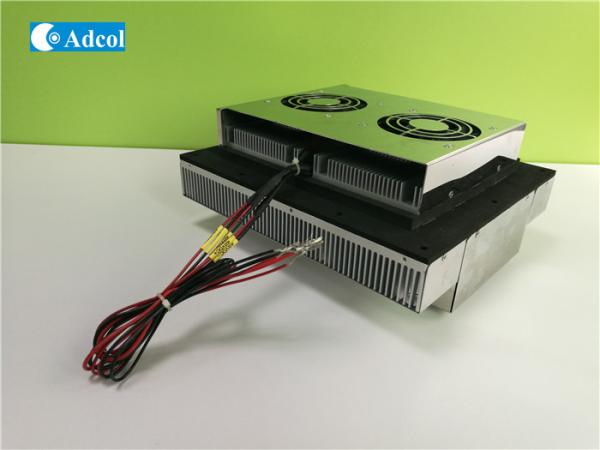

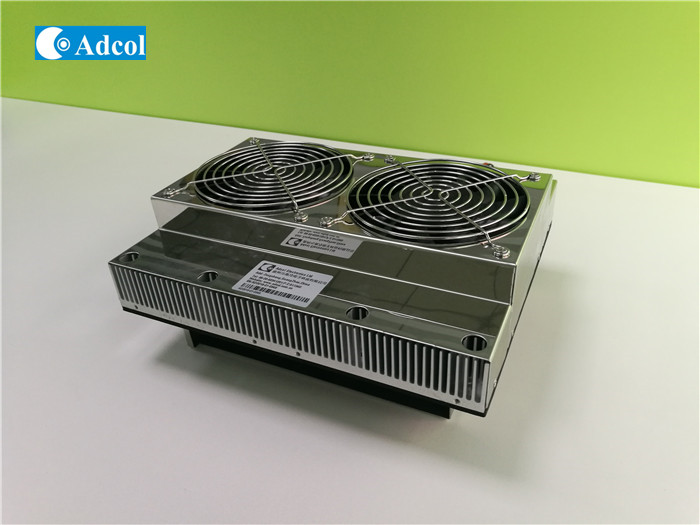

Air To Air Thermoelectric Conditioner 48V DC / Thermoelectric Air Cooler

Brand Name : Adcol

Model Number : ATA-115 (C200) -48VDC R02

Certification : ISO9001 , CE

Place of Origin : China

MOQ : 1pcs

Price : Negotiation

Payment Terms : T/T , Paypal

Supply Ability : 500Pcs per month

Delivery Time : 3 - 4 Weeks

Packaging Details : Solid Carton Packaging

Cooling Power Qmax : 115W

Input Voltage : 48VDC

Running Current : 4.1A

Start Current : 5.3A

Nominal V : 48VDC

Power input : 200W

Contact Now

Air To Air Thermoelectric Assembly Thermoelectric Conditioner

ATA-115-48 Product Description

​The ATA Power Cool Series is an Air-to-Air Thermoelectric Assembly (TEA) that uses impingement flow to transfer heat. It offers dependable, compact performance by cooling objects via convection. Heat is absorbed and dissipated thru high density heat exchangers equipped with air ducted shrouds and brand name fans. The heat pumping action is created by thermoelectric modules, which are custom designed to achieve a high coefficient of performance (COP).

​Features
​- Compact design
​- Reliable solid-state operation
- DC operaton
- RoHS compliant

Characteristics
​- Application : Outdoor Batter Cabinets
​- Meet RoHs & WEEE
​- EMC meet class B
​- Safety: IEC60950-1/EN
​- Anti-Corrosion: IEC68-2-30/52

Performance Data
Cooling Power Qmax : 115W
Running Current: 4.1 A

​Startup Current: 5.3 A

Nominal Voltage : 48V
​Max Voltage : 55.2 V
​Power input : 200W
Operating Temperature : -10 ~ 70 degree C
Weight : 4KG
​MTBF(fan-hrs): 60000
Performance Tolerance : 10%
​Dust and Water proofing : IP55
​Noise : <55dB
