0.8Amps TEG Thermoelectric Generator Cooler 10.0V Voltage 6.6Ohm Resistance

Name: 08Amps TEG Thermoelectric Generator Cooler 100V Voltage 66Ohm Resistance
Brand: Adcol
Price: 1 USD

0.8Amps TEG Thermoelectric Generator Cooler 10.0V Voltage 6.6Ohm Resistance Manufactures

Brand Name : Adcol

Model Number : TEG1-127-1.0-1.5-250

Certification : ISO9001 , CE

Place of Origin : China

MOQ : 10

Price : Negotiation

Payment Terms : T/T , Paypal

Supply Ability : 1000pcs per month

Delivery Time : 3 - 4 weeks

Packaging Details : Solid carton packaging

Voltage : 10.0V

Resistance : 6.6Ohm

Current : 0.8Amps

Power : 3.8Watt

Density : 8.4Wcm2

AC resistance : 4.1Ohm

Contact Now

0.8Amps TEG Thermoelectric Generator Cooler 10.0V Voltage 6.6Ohm Resistance

Thermoelectric power generating module (TEG) is one kind of power generating device which uses

the Seebeck Effect to convert heat source into electricity directly. It has the characteristics of compact structure, reliable performance, maintenance-free, working without noise, low-carbon and green. The heat source of TEG is extremely extensive. It will generate DC electricity continuously as long as there is temperature difference between both sides of module. Besides thermoelectric material, the factor which affects the generating capacity and conversion efficiency of TEG is the temperature difference. The larger temperature difference, the more generating capacity and higher conversion efficiency will be obtained.

We are specialists in cooling system design

We offer flexible and friendly service throughout both planning and delivery.

Components are widely used in refrigeration temperature of the military medical and laboratory equipment consumer products and industrial areas.

Part Number	TEG1-127-1.0-1.5-250
Hot side Temperature (Degree C)	250
Cold Side Temperature (Degree C)	30
Voltage open circuit (Volts)	10.0
Matched load resistance (Ohm)	6.6
Matched load output Voltage (Volts)	5.0
Matched load output Current (Amps)	0.8
Matched load output power (Watt)	3.8
Heat flow across the module (Watt)	76
Heat flow Density (Wcm2)	8.4
AC resistance (Ohm) under 27 degree C	4.1

Mechanical Dimension & Construction
0.8Amps TEG Thermoelectric Generator Cooler 10.0V Voltage 6.6Ohm Resistance

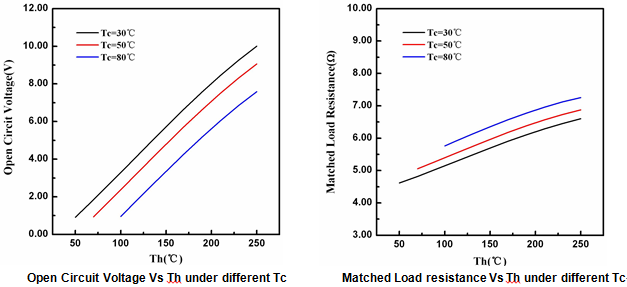

Performance Curve

0.8Amps TEG Thermoelectric Generator Cooler 10.0V Voltage 6.6Ohm Resistance

0.8Amps TEG Thermoelectric Generator Cooler 10.0V Voltage 6.6Ohm Resistance
