TEC Heat Sink Thermoelectric Cooler Module , Teg Peltier Module

Name: TEC Heat Sink Thermoelectric Cooler Module Teg Peltier Module
Brand: Adcol
Price: 1 USD

Brand Name : Adcol

Model Number : TEC1-3506U

Certification : ISO9001 , CE

Place of Origin : China

MOQ : 10pcs

Price : Negotiation

Payment Terms : T/T , Paypal

Supply Ability : 500pcs per month

Delivery Time : 3 - 4 Weeks

Packaging Details : Solid carton packaging

Imax : 6.0A

Qmax : 14.2W

Vmax : 4.24V

Tmax : 67℃

Length : 30mm

Width : 15mm

Contact Now

TEC Heat Sink Thermoelectric Cooler Module , Teg Peltier Module

Thermoelectric Benefits
• TE coolers contain no chlorofluorocarbons or other materials which may require periodic replenishment.
• Temperature control to within fractions of a degree can be maintained using TE devices and the appropriate support circuitry.
• TE coolers function in environments that are too severe, too sensitive, or too small for conventional refrigeration.
• TE coolers are not position-dependent.
• The direction of heat pumping in a TE system is fully reversible. Changing the polarity of the DC power supply causes heat to be pumped in the opposite direction—a cooler can then become a heater!

Model		TEC1-3506U
Imax(A)		6
Qmax(W)		14.2
Vmax(V)		4.24
Th=25℃ Tmax(℃)		6.7
Dimension (mm)	A	15
	B	30
	C	15
	D	3.8

TEC Heat Sink Thermoelectric Cooler Module , Teg Peltier Module

Product Tags:

thermoelectric cooler module

teg peltier module

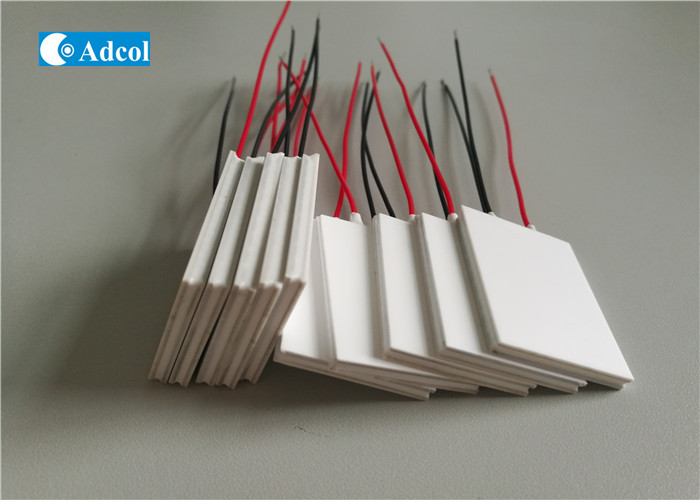

TEC Heat Sink Thermoelectric Cooler Module , Teg Peltier Module Images
