50W Cold Plate Cooling Air to Plate Cooling System For Electronic

Name: 50W Cold Plate Cooling Air to Plate Cooling System For Electronic
Brand: Adcol
Price: 1 USD

Brand Name : Adcol

Model Number : ATP050-12VDC

Certification : ISO9001 , CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T , Paypal

Supply Ability : 500pcs per month

Delivery Time : 3 - 4 weeks

Packaging Details : Solid carton packaging

Cooling Capacity : 50W

Voltage : 12VDC

Stable Current : 8A

Weight : 1.1kg

Contact Now

50W Cold Plate Cooling Air to Plate Cooling System For Electronic

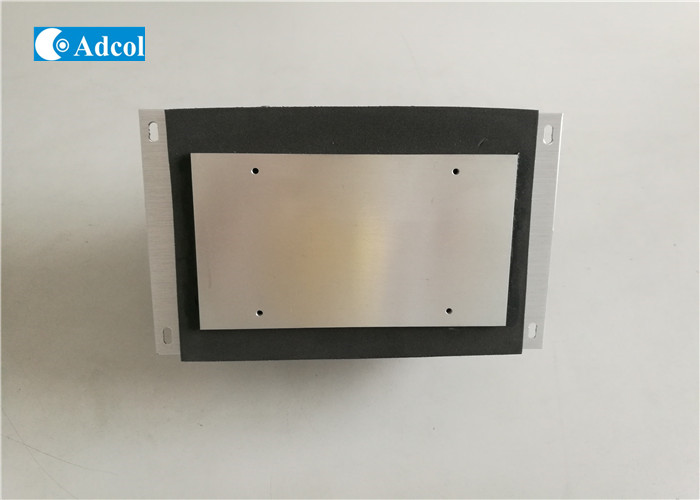

Plate Cooler designed using air for heat dissipation and direct cool contact, provide reliable cool capacity to the objective. It is used widely in Medical device, instrument / laboratory test equipment, or direct contact cooling design etc. It has flexible design, small size and high reliability advantage.

Adcol Item		ATP050-12VDC
Description		Air to Plate Cooling System
Cooling Capacity(W)		42
Voltage(VDC)		12
Ambient Temperature		0-60︒C
Running Current(A)		8.9
Peak Current(A)		10.8
Weight(kg)		1.1
Dimension (mm) (Plate side)	Length	80
	Width	60
	Height	12
Dimension (mm) (Air side)	Length	160
	Width	122
	Height	70
