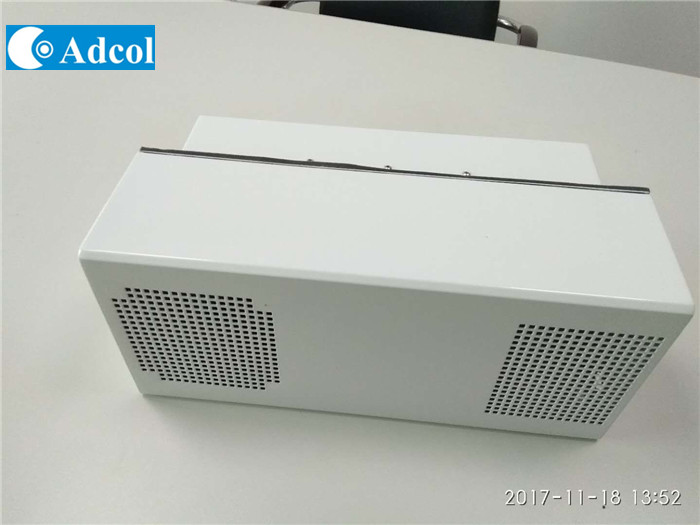

Customized Thermoelectric Air Conditioner / Peltier Air Cooler 100W 48VDC

Name: Customized Thermoelectric Air Conditioner Peltier Air Cooler 100W 48VDC
Brand: Adcol
Price: 1 USD

Customized Thermoelectric Air Conditioner / Peltier Air Cooler 100W 48VDC Manufactures

Brand Name : Adcol

Model Number : ATA100-48VDC Customized

Certification : ISO9001 , CE

Place of Origin : China

MOQ : 1pcs

Price : Negotiation

Payment Terms : T/T , Paypal

Supply Ability : 500Pcs per month

Delivery Time : 3 - 4 Weeks

Packaging Details : Solid Carton Packaging

Capacity-Qmax : 100W

Input Voltage : 48VDC

Running Current : 15.0amps

Start Current : 13.8amps

Hot Side Fans Current : 0.52amps

Cold Side Fans Current : 0.45amps

Contact Now

Customized Thoermoelectric Air Conditioner Peltier Air Cooler 100W 48VDC

Design Calculation Tutorial
Let’s assume a solid-state electronic component requires cooling to improve performance and reliability. The component resides in an environment with a maximum ambient air temperature of 35°C and dissipates 15 Watts. Cooling the component to 18°C will improve performance and reliability.
Our thermoelectric cooling system will have the following physical characteristics: the electronic component will be in direct contact with cold side of the TE cooler, and the heat sink and fan will be in direct contact with hot side of the TE cooler.

The natural flow of heat is always from hot to cold. When DC power is applied to the thermoelectric module, the cold side becomes colder than the electronic component, so heat flows naturally from the component to the TE module.
The charge carriers in the semiconductor material relocate the heat from the electronic component to the heat sink. This causes the temperature of the heat sink to rise. When the temperature of the heat sink exceeds that of the surrounding air, heat will flow naturally from the sink to the atmosphere.
