Thermoelectric Cold Peltier Plate Cooler Air To Plate 250 24VDC

Name: Thermoelectric Cold Peltier Plate Cooler Air To Plate 250 24VDC
Brand: Adcol
Price: 1 USD

Thermoelectric Cold Peltier Plate Cooler Air To Plate 250 24VDC Manufactures

Brand Name : Adcol

Model Number : ATP250-24-AD-01

Certification : ISO9001 , CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T , Paypal

Supply Ability : 500pcs per month

Delivery Time : 3 - 4 weeks

Packaging Details : Solid carton packaging

Running current : 12.5

Voltage : 24VDC

Cooling power : 250W

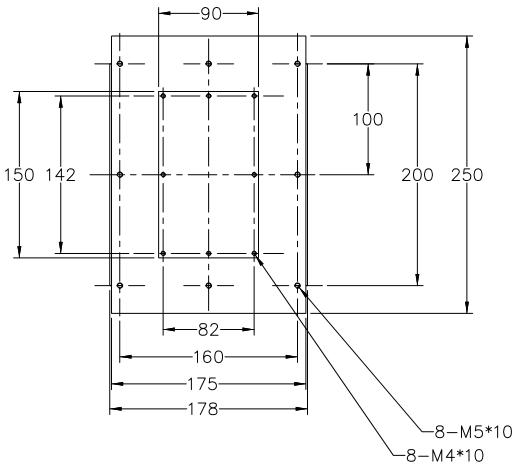

Length : 250mm

Width : 178mm

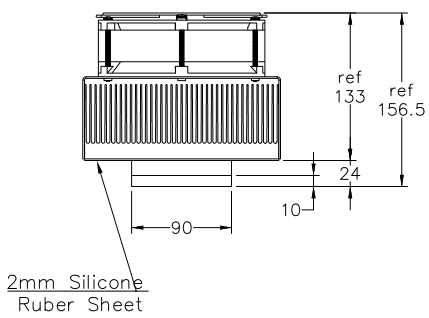

Height : 156.5mm ref

Contact Now

Thermoelectric Cold Plate Cooler Air To Plate 250 24VDC

Specification (Ta=27 Degree C)	Description

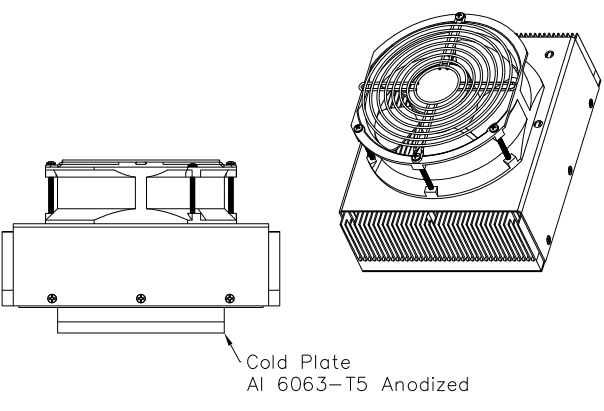

Heat transfer, Cold	Plate
Heat transfer, Hot	Air
Cooling power (W)	250, Delt T = 0
Voltage, normal (VDC)	24, Vmax=27.2
Current (A)	Initial, 14﹢／﹣10%
Current (A)	Normal, 12.5﹢／﹣10%
Fan, cold side	N/A
Fan, hot side	17251, 24VDC
Operating Temp	-40~60 degree C (Fan: -10~70 degree C)
Weight (kg)	6

Note:
1. The temperature of the cold plate can be controlled in -20~150 degree C
2. Rohs Compliance

Thermoelectric Cold Peltier Plate Cooler Air To Plate 250 24VDC

Product Tags:

thermoelectric cold plate

electrical cooling plate

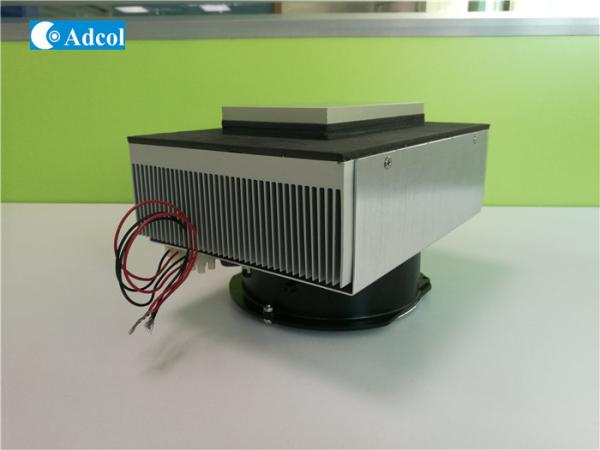

Thermoelectric Cold Peltier Plate Cooler Air To Plate 250 24VDC Images
