BiTe TEC 12705 Cooling Peltier Thermoelectric Cooler Small Refrigerator
Product Characteristic

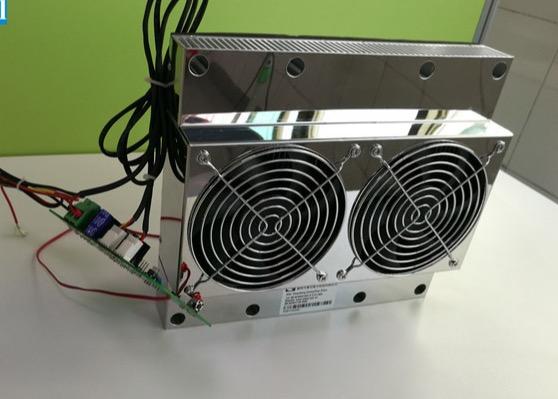

The Peltier air cooler power supply is 48VDC, mainly used for telecommunication outdoor cabinets, battery cabinet etc. perfect cooling solution for telecom battery cabinet, mini cabinet heat dissipation. Intelligent controller built in for having remote control, alarming output. Three working modes: cooling, heationg, standby.
Benefits of Thermoelectric Cooling
Thermoelectric Coolers have several advantages over alternate cooling technologies:
Solid-state construction features no moving parts resulting in higher reliability.
Units can be mounted in any orientation.
Thermoelectric coolers can cool devices down to well below ambient. Colder temperatures can be achieved, down to minus 100°C by using a multistage thermoelectric cooler in a vacuum environment.
Thermoelectrics can heat and cool by simply reversing the polarity, which changes the direction of heat transfer. This allows temperature control to be very precise, where up to ±0.01°C can be maintained under steady-state conditions.
In heating mode, thermoelectric coolers are much more efficient than conventional resistant heaters because they generate heat from input power supplied plus additional heat generated by the heat pumping action.
Devices are environmentally friendly because they use no CFCs and electrical noise is minimal.
Thermoelectric coolers can be used as energy harvesters, turning waste heat into usable output DC power.
| Model No. | Imax A | Tmax ℃ | Vmax V | Qmax W | Dimensions mm |
| TES1-12706 | 6 | ≥66℃ | 15 | 50 | 30*30*2.8 |
| TES1-12705 | 5 | ≥66℃ | 15 | 43 | 30*30*3.2 |
| TES1-12704 | 4 | ≥66℃ | 15 | 34 | 30*30*3.2 |
| TES1-12703 | 3 | ≥66℃ | 15 | 25.6 | 30*30*3.6 |
| TES1-12702 | 2.5 | ≥66℃ | 15 | 21 | 30*30*4.0 |
| TES1-12701 | 1.3 | ≥66℃ | 15 | 11 | 30*30*5.0 |
Smart Electronics Peltier thermoelectric cooler 12V,thermoelectric cooler peltier,industrial peltier module
Chip model: TEC1-12703
Dimensions: 40*40*4.0mm±0.1 Component Logarithm 127
Wire size: lead length 310mm ± 5mm RV standard wire single head 5mm tinned
Internal resistance: 4.0~4.3Ω (ambient temperature 23±1°C, 1kHZ Ac test)
Large temperature difference: ΔTmax (Qc = 0) 60 ° C or more.
Working current: Imax=3 (when rated voltage starts)
Rated voltage: DC12V (Vmax: 15.5V)
Cooling power: Qcmax 27W
Assembly pressure: 85N/cm2
Working environment: Temperature range -55 °C ~ 83 °C (excessive ambient temperature drop directly affects cooling efficiency)
Packaging process: four weeks standard 704 silicone rubber seal
Packing standard: foam box packaging, storage conditions, ambient temperature -10 ° C ~ 40 ° C
Storage conditions: -40~60°C
FAQ
Q1:Are you a trading company or manufacturer?
We are a professional manufacturer for 30 years.
Q2:Do you have inspection procedure before shipping.
Yes,wo do.100% QC inspection Before Shipment.
Q3:What’s the delivery time?
Within 10-15days for 1 container order.
