30VDC 110W Lab Peltier Plate Cooler NTC Sensor Type

Name: 30VDC 110W Lab Peltier Plate Cooler NTC Sensor Type
Brand: Adcol
Price: 1 USD

30VDC 110W Lab Peltier Plate Cooler NTC Sensor Type Manufactures

Brand Name : Adcol

Model Number : ATP080-24-ZP-00

Certification : CE

Place of Origin : China

MOQ : 1pc

Price : TBA

Payment Terms : T/T

Supply Ability : 1000pcs/month

Delivery Time : 2-3 weeks

Packaging Details : Carton

Input power : 110W

Input Voltage : 24VDC , Vmax 30VDC

Max Cooling Power : 85W

Running Stable Current : 4.5A

Max Heating Power : 180W

Sensor Type : NTC

Contact Now

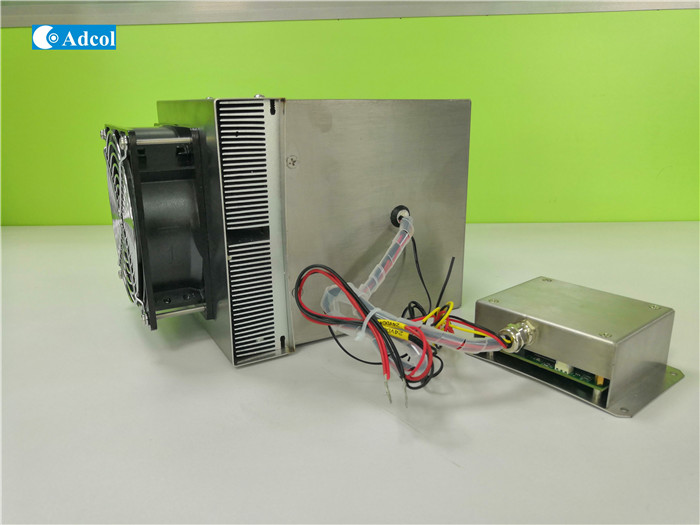

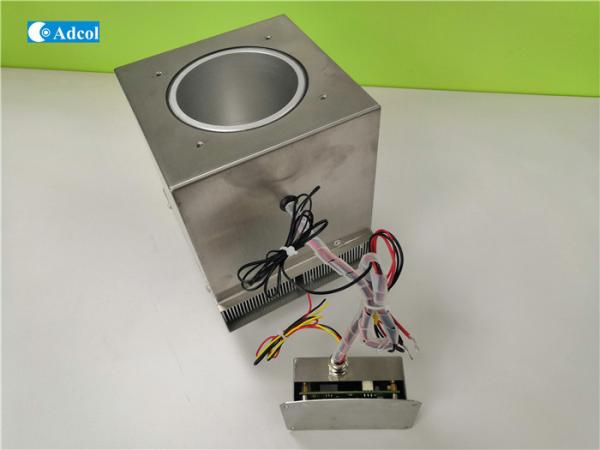

Laboratory Thermoelectric Cooler Peltier Plate Cooler Small TEC Cooler

Peltier effect, the cooling of one junction and the heating of the other when electric current is maintained in a circuit of material consisting of two dissimilar conductors; the effect is even stronger in circuits containing dissimilar semiconductors. In a circuit consisting of a battery joined by two pieces of copper wire to a length of bismuth wire, a temperature rise occurs at the junction where the current passes from copper to bismuth, and a temperature drop occurs at the junction where the current passes from bismuth to copper. This effect was discovered in 1834 by the French physicist Jean-Charles-Athanase Peltier.

P/N	ATP080-24-ZP-00
Input Power	110W
Input Voltage	24VDC , Vmax 30VDC
Max Cooling Power	85W
Running Stable Current	4.5A
Max Heating Power	180W
Sensor Type	NTC
Temp. Control Module	Single PID intelligent temperature control , RS485

30VDC 110W Lab Peltier Plate Cooler NTC Sensor Type
